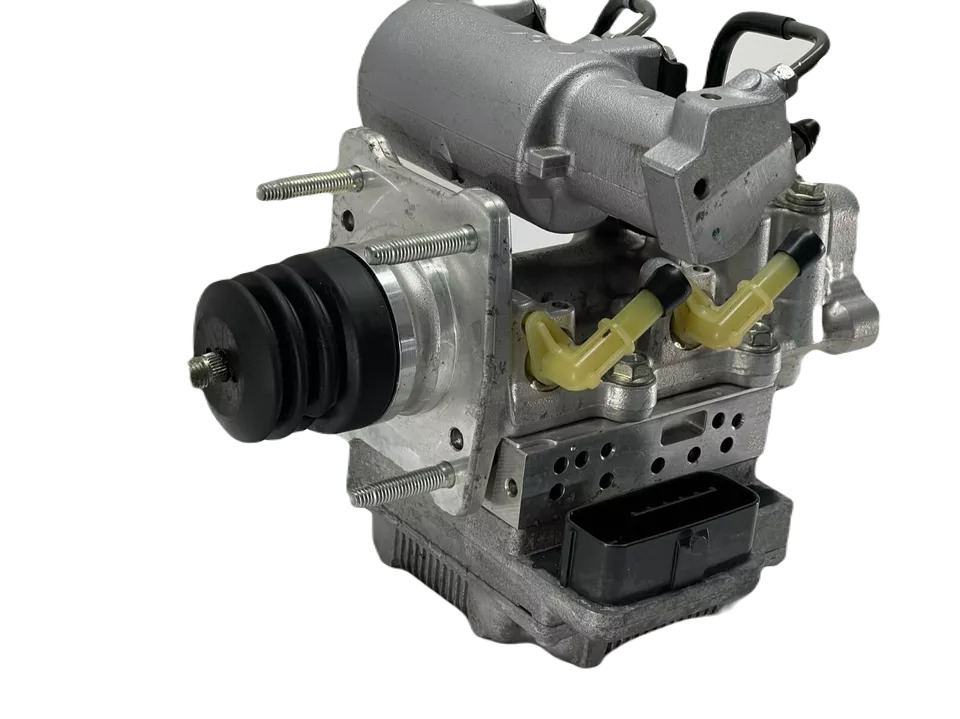

NISSAN Brake Booster
3 Methods for Testing Power Brake Booster Failure
Method 1: Testing a power brake booster is a fairly simple process. If you suspect the power brake booster is the root source of your brake system failure, complete the following three steps:
- With your engine turned off, pump the brake pedal several times. This will ensure that there is no vacuum remaining inside the brake booster.
- Press the brake pedal down hard one final time and leave your foot on the brake pedal as you start the engine. Do not release your foot from the brake pedal during this process.
- If the brake booster is working correctly, you’ll feel a slight give in the pedal as the engine turns over. This is because the vacuum in the engine is supplying pressure to the brake booster.
Method 2:If you complete this step and the brake pedal does not move, it is an indicator that the power brake booster is not receiving vacuum pressure. This is when you should attempt a secondary power brake booster test.
- Let the engine run for a few minutes.
- Turn the engine off, then repeatedly press the brake pedal slowly. When you pump it the first time the pedal should be very ‘low’— meaning not much pressure resistance. As you pump the pedal, the pressure should become firmer, which will indicate that the brake booster is not leaking.
NISSAN Brake Booster
Method 3:If each of these tests passes, there are two more components you can check:
- Inspect the Booster Check Valve: The check valve is located on the power brake booster itself. To locate it, consult your vehicle repair manual. You’ll want to disconnect the vacuum hose as it connects to the engine’s intake manifold. Make sure to disconnect it on the manifold and not the brake booster. If it’s working correctly, air should not flow with pressure applied. If air flows in both directions or you can’t blow air through, the valve is damaged, and the power brake booster will require replacement.
- Verify Vacuum: In order for a power brake booster to work, a minimum amount of pressure is required. You can test the vacuum and verify that there is a minimum of at least 18 inches of vacuum pressure and no vacuum leaks.
If you don’t feel comfortable completing these tests, it might be a good idea to have a professional mechanic come to your location to complete an onsite brake system inspection. It is not recommended to drive a vehicle to a repair facility if you are experiencing brake system problems, so a mobile mechanic visit is a smart and safe idea.
