The brake booster in hybrid cars is a fundamental system that enables easy and smooth braking operations. The booster enhances your physical power on the brake pedal so you can safely stop your vehicle effortlessly. With time, the part wears down or reaches its end of life, thus creating problems with braking performance and safety issues.
When stopping the vehicle, a failing hybrid brake booster manifests different brake sensations and increased pedal resistance. Adjusting this issue can lead to dangerous driving conditions for you and your passengers. This guide will examine the seven indicators that your hybrid brake booster requires replacement, explain the reasons behind this issue, and offer possible solutions.

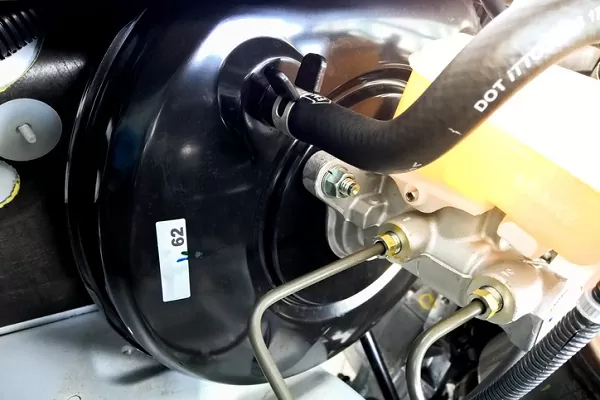

What Is a Hybrid Brake Booster and How Does It Work?
The vacuum-assisted hybrid brake booster system improves braking effectiveness in hybrid vehicles through its operation. Hybrid vehicles use electric vacuum pumps and hydraulic braking systems instead of conventional vehicles’ brake mechanisms. Hybrid vehicles continue delivering strong braking functions through EV mode operation since their brake boosters remain active when the gasoline engine turns off.
Vehicle braking experiences amplified force because of the booster, allowing drivers to control their speed more easily despite pushing the pedal. The booster’s failure will lead to unresponsive or inconsistent braking systems, making the vehicle prone to accidents.
1. Hard Brake Pedal – Brakes Feel Stiff
A brake booster failure usually reveals itself through progressive stiffness in the brake pedal. When slowing down with brakes, the movement should operate freely. When vacuum pressure diminishes in the booster, greater force is required to apply pressure to the pedal.
Why It Happens:
- A vacuum leak in the brake booster
- The electric vacuum pump located in hybrid models creates failure when it does not function properly.
- A damaged booster diaphragm.
🚨Solution: You should immediately check your hybrid brake booster when your brake pedal requires excessive force. The neglect of this problem may result in hazardous brake failure occurrences.
2. Increased Stopping Distance
When you apply regular pressure, your vehicle requires additional time to stop. A failing brake booster shows itself through this major warning sign during operation.
Why It Happens:
- The braking force amplification power of the booster has ceased to function.
- The hydraulic brake system suffers from pressure reduction.
- The vacuum system is malfunctioning.
🚨Solution: If you recognise an increased stopping distance in your vehicle, you should visit an expert mechanic to test your brake system. Excited braking requires immediate attention because such situations are dangerous to your safety.
3. Hissing Noise from the Brake Pedal
A vacuum leak within the brake booster causes a typical hissing sound during brake pedal engagement. Booster diaphragm or vacuum hose leaks cause this defect.
Why It Happens:
- Cracks or damage to the vacuum hose leads to system malfunction.
- Air escapes from the booster diaphragm, which contributes to the leakage inside.
- The check valve is faulty.
🚨 Solution: Have a mechanic inspect your vacuum system. A brisk change of your booster unit must happen immediately because an unrepaired leak leads to total brake failure.
4. Engine Stalling or Rough Idling
The brake booster in your hybrid car uses vacuum pressure from the vehicle’s engine compartment. The booster’s failure or presence of leaks will result in engine stall or roughness while braking.
Why It Happens:
- The engine vacuum travels to the brake booster, releasing excessive vacuum pressure.
- The vacuum hose exhibits a cracked condition as air intake becomes disrupted.
- The combination of engine air and fuel loses its equilibrium state.
🚨 Solution: To fix car stalls during braking, you must inspect the brake booster and vacuum hose, as stated by. Such problems could end up harming the engine if left untreated.
5. Brake Warning Light on Dashboard
Hybrid vehicles come with built-in brake system sensors that activate dashboard warning lights when there is an issue with the brake components. Detection of a brake warning light requires immediate check of your brake booster and its supporting elements.
Why It Happens:
- The vacuum pump is malfunctioning.
- The pressure inside the master cylinder is decreasing.
- The brake booster is failing.
🚨Solution: An OBD-II scanner provides the necessary tool to detect error codes. If the brake warning light is active, you should bring your hybrid car to a qualified specialist immediately.
6. Sinking Brake Pedal – Pedal Goes Too Low
A sinking brake pedal causes your foot to descend beyond the typical range until the vehicle eventually starts to slow down. A malfunction of the brake booster or hydraulic system can cause this condition.
Why It Happens:
- The brake booster develops a leak through which vacuum pressure escapes.
- The master cylinder is failing.
- The brake lines have been contaminated by air or moisture.
🚨 Solution: Being diagnosed with a brake pedal that sinks too low requires immediate car inspection at a workshop. Complete brake failure might occur when this problem arises.
7. Brakes Feel Weak in Stop-and-Go Traffic
Weak brake power while driving through stop-and-go traffic indicates a faulty hybrid booster. The brake system of hybrid cars requires a continuous vacuum supply because these vehicles alternately use gasoline and electric motor power.
Why It Happens:
- A vacuum failure within the brake booster ensures insufficient vacuum power.
- A lack of performance exists within the electric vacuum pump.
- A malfunction exists within the hydraulic braking system.
🚨Solution: If your brakes show inconsistent or weak performance during traffic conditions, the brake booster must be replaced before its condition deteriorates.

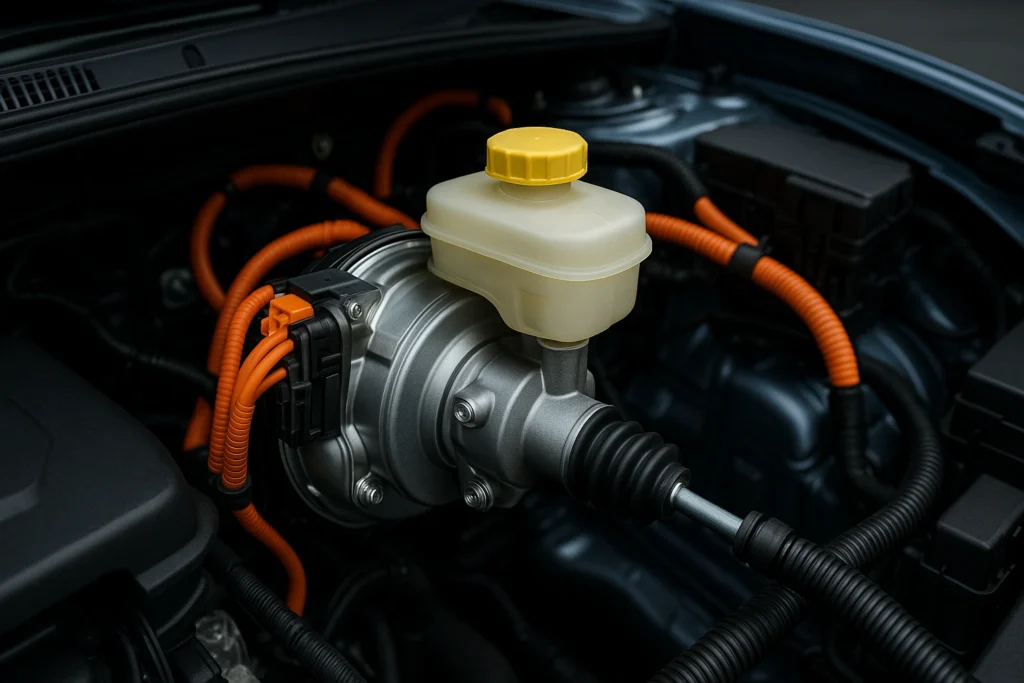

When Should You Replace Your Hybrid Brake Booster?
If you notice any of the seven warning signs mentioned above, it’s time to replace your brake booster. Driving with a failing booster reduces braking performance, making your car unsafe.
🚨 Immediate Replacement is Needed If:
✅ Your brake pedal is too hard or too soft
✅ Your car takes longer to stop
✅ You hear hissing sounds from the brake pedal
✅ Your brake warning light is on.
Ignoring these symptoms can lead to complete brake failure.
